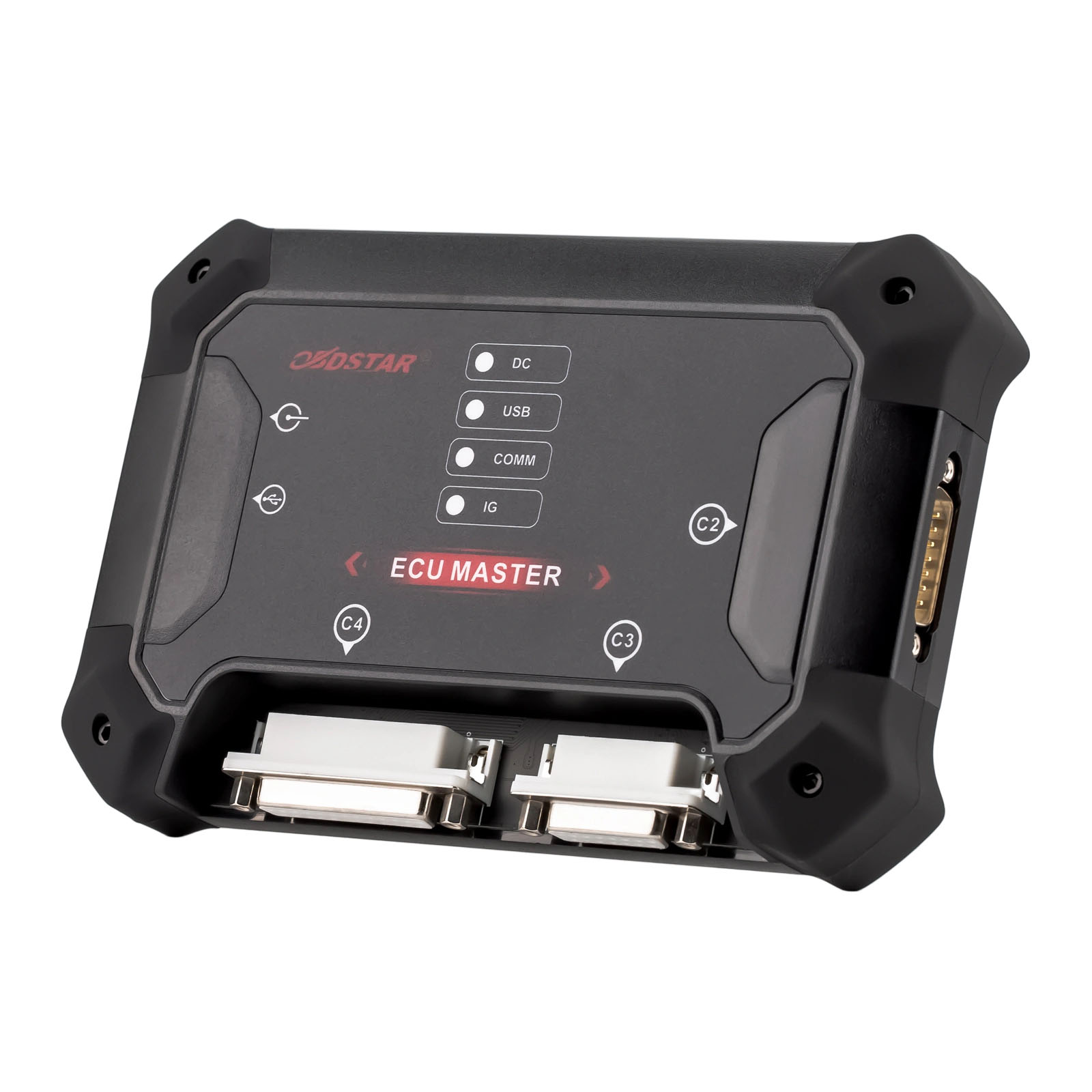

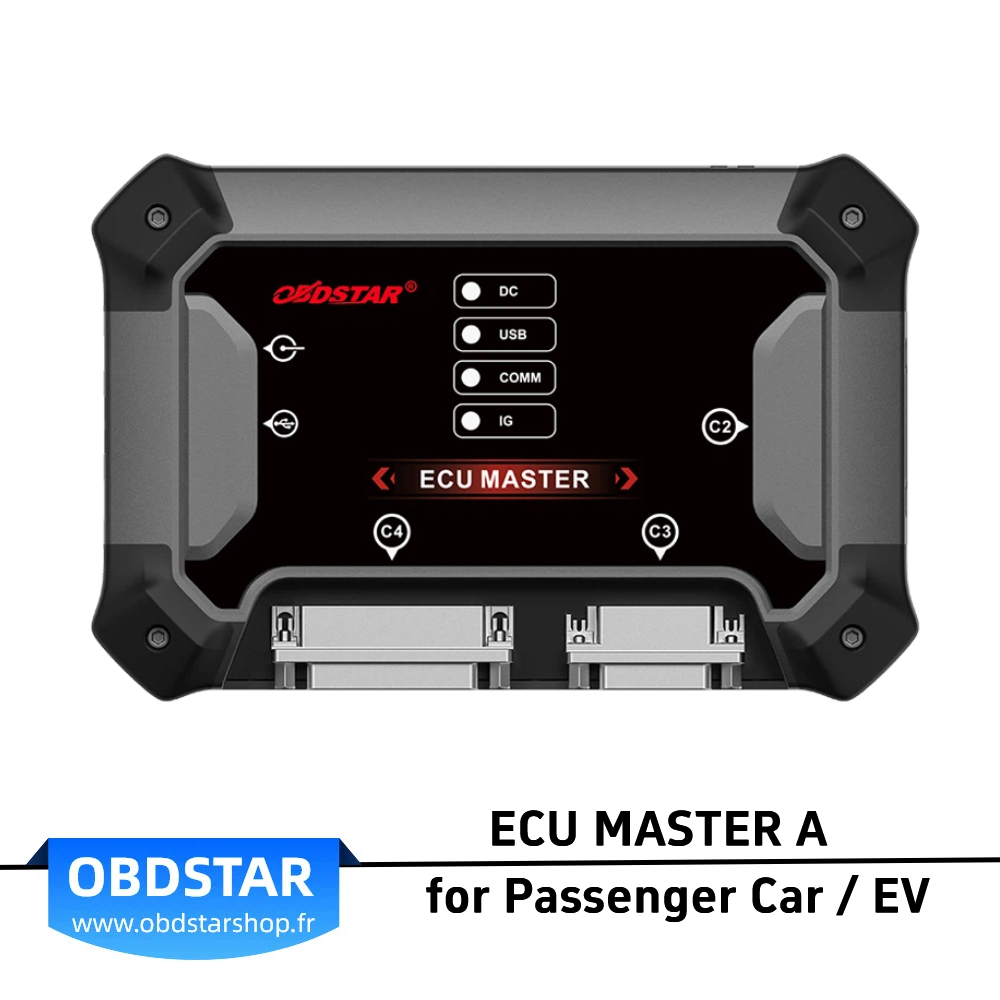

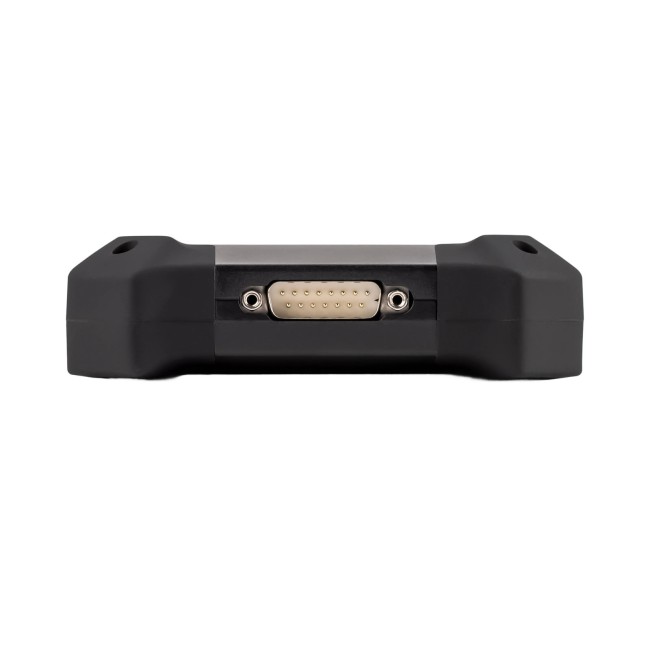

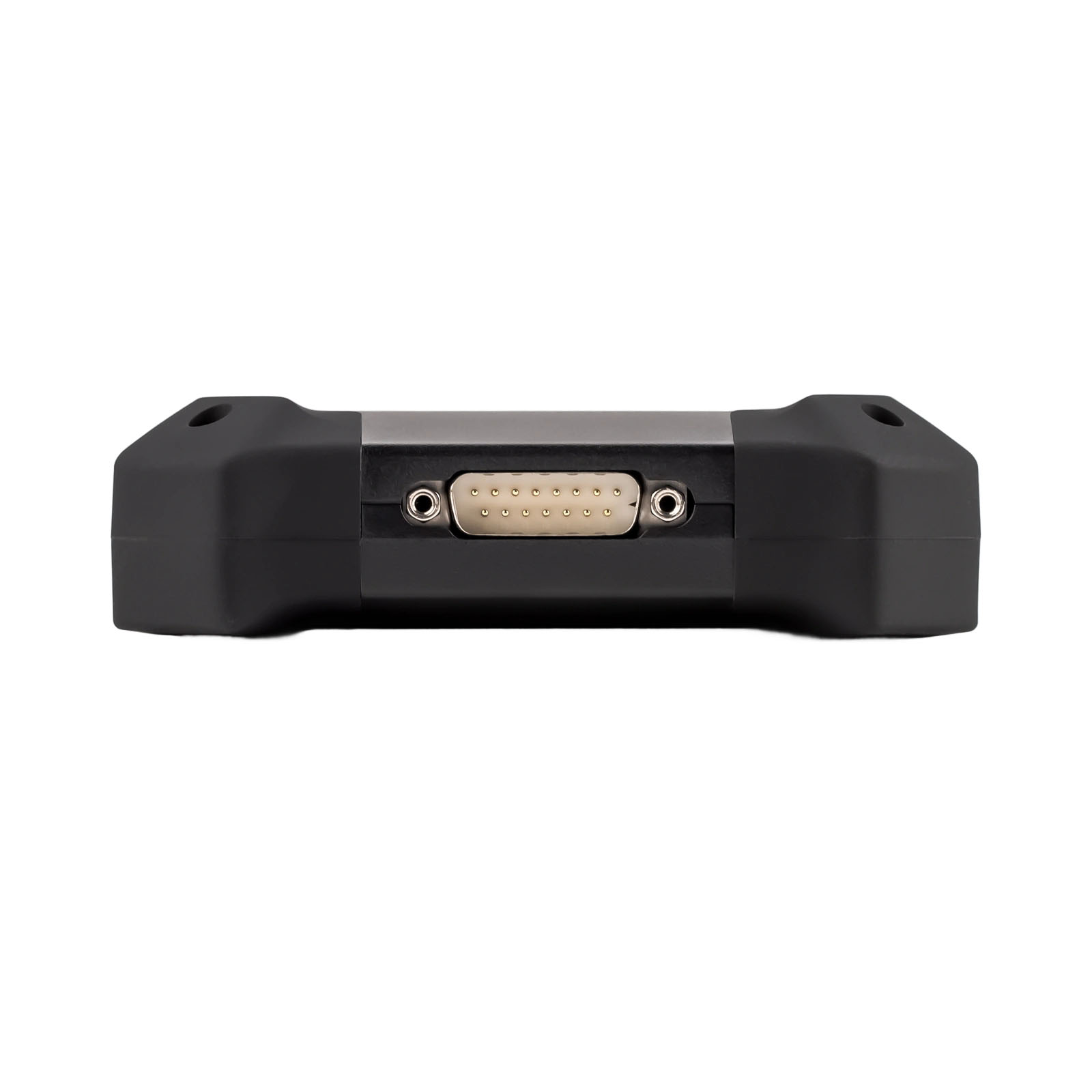

OBDSTAR ECU MASTER A for Passenger Car / EV Supports ECM TCM BCM and Others Clone Functions First Professional PC Based ECU Flasher

OBDSTAR ECU MASTER A for Passenger Car / EV Supports ECM TCM BCM and Others Clone Functions First Professional PC Based ECU Flasher

Numéro d'article.SE197-A En stock. Histoire 1 vendu.

0 évaluation

1 a répondu à la question

Achat immédiat: €1,260.00

Configuration: A for Passenger Car / EV

A for Passenger Car / EV
€1,260.00

D for Airbag, Battery and SAS Reset
€540.00

OBDSTAR ECU MASTER C for HD Supports TCM ECM BODY/CHASSIS/OTHER Clone Functions, The First Professional PC-based ECU Flasher

C for HD
€1,784.00

OBDSTAR ECU MASTER B for Motorcycle ECM Cloning

B for Motorcycle
€692.00

9 Configuration: A for Passenger Car / EV OBDSTAR ECU MASTER A for Passenger Car / EV Supports ECM TCM BCM and Others Clone Functions First Professional PC Based ECU Flasher

EU Livraison Rapide & Sans Taxe! SHOP NOW >>
Nouveau Produit Phare ECU MASTER SHOP NOW >>

Contactez-nous :
Email: sales@OBDSTARshop.fr
WhatsApp: +86 15696171935

Version:

Configurations A

Livraison:

Livraison gratuite Service d'expédition expressDélai de livraison estimé: 3-5 jours. Voir détails »

Quantité:

Poids:

0.7KG ( 0.32LB )

Paquet:

176cm*115cm*31.7cm ( Inch: 69.12*45.16*12.45 )

Résultats:

Retour pour remboursement dans les 7 jours, l'acheteur paie l'expédition de retour. Lire les détails »

Fichiers de téléchargement associés

ECU+MASTER+COVERAGE.zip (295K) ECU+MASTER+User+Manual.pdf (2.6M)

Description du produit

Configurations A：
for Passenger Car --- TCM ECM BODY/CHASSIS/OTHER
for EV --- BMS/VCU/OTHER
The difference compared to the DC706 is that the DC706 requires optional accessories such as the P003+, MP001, CANFD, etc.
This ECUMASTER already has all of these built in.

OBDSTAR ECU MASTER A for Passenger Car / EV Supports ECM TCM BCM and Others Clone Functions First Professional PC Based ECU Flasher

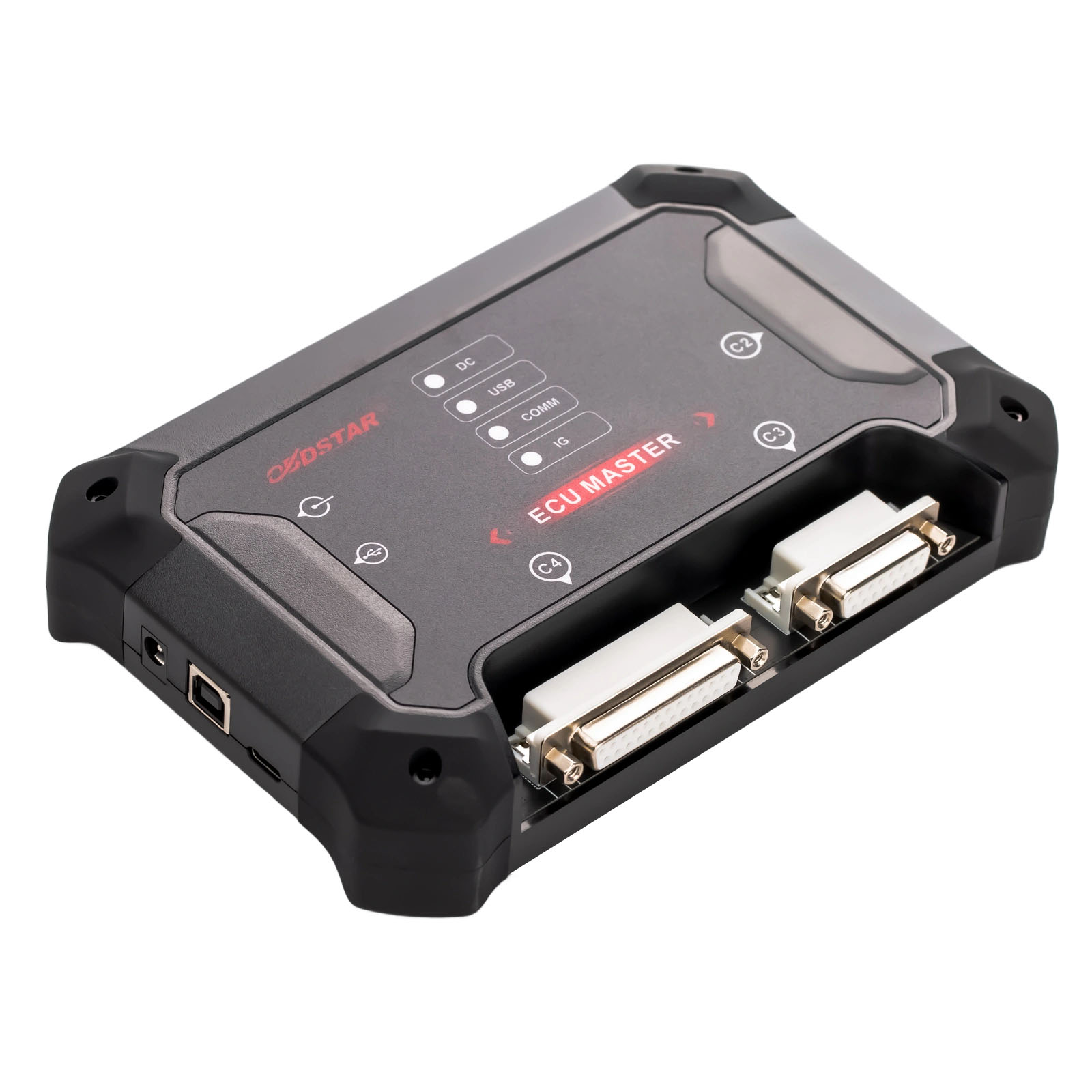

ECU MASTER is the first professional PC-based ECU Flasher for OBDSTAR and supports Passenger Car, EV, Motorcycle, and HD (ECM/TCM/BCM) clone functions. It is compatible with ECUs from major global brands, provides precise maintenance for popular units, and is equipped with anti-misoperation reminders, allowing even beginners to get started quickly!

The device supports paid configuration upgrades. Users only need one hardware device to add and activate other configurations according to their needs.
L’appareil prend en charge les mises à niveau de configuration payantes. L’utilisateur n’a besoin que d’un seul appareil matériel pour ajouter et activer d’autres configurations selon ses besoins.
Buy Additional Configurations

File download
ECU+MASTER+User+Manual
ECU+MASTER+COVERAGE

ECU MASTER Configuration Types

Specifications	Features
Configurations A	for Passenger Car --- TCM ECM BODY/CHASSIS/OTHER for EV --- BMS/VCU/Other The difference compared to the DC706 is that the DC706 requires optional accessories such as the P003+, MP001, CANFD, etc.This ECUMASTER already has all of these built in.
Configurations B	for Motorcycle --- ECM
Configurations C	for HD --- TCM ECM BODY/CHASSIS/OTHER
Configurations D	Airbag, Battery and SAS Reset. This model is Airbag Master,similar function as P50, but does not need MP001, RH850 and CAN FD adapters.
Configurations A+B+C
Configurations A+B+D
Configurations B+C+D
Configurations A+C+D
Configurations A+B+C+D

OBDSTAR ECU MASTER Functions

1. Passenger Car ECM / TCM / BCM Cloning
Support Reading and Writing ECU units of thousands of car models:
BOSCH MED/EDC17 series, CONTINENTAL SIMOS series, GPEC series, DELPHI series, DSG TCM units, MB FBS4 series units etc.

Supports ECU advanced functions
CheckSum, IMMO Data Convert, IMMO Data Decryption, IMMO OFF/ON, Coolant Temperature Sensor Calibration, Mileage Calibration, ECU RunTime Calibration, VlN Read/Write, Virgin Reset etc.

2. HD ECM/TCM/BCM Cloning
Supports major global commercial vehicle brands:

TRUCK
for MERCEDES-BENZ, for VOLVO, for SCANIA, for MAN, for IVECO, for ISUZU, for MITSUBISHI FUSO, for FAW, FORD etc.

TRACTOR/OHW(OFF-HIGHWAY VEHICLES/MACHINERY)
for JOHN DEERE, for CNH INDUSTRIAL, for KUBOTA, for YANMAR etc.

Support global HD ECU brands
BOSCH, DENSO, CONTINENTAL, DELPHI, SIEMENS, CUMMINS, WABCO, ZF etc.

Supports ECU Advanced functions
VlN Read/Write , Virgin Reset, Mileage Calibration, CheckSum, MAPS Read/Write, ECU Lock/Unlock, IMMO OFF/ON etc.

3. Motorcycle ECM Cloning
Supports 100+ motorcycle brands and 300+ motorcycle ECU types.

Supports ECU advanced functions
VlN Read/Write, Data Read/Write , ISN Read/Write, Virgin Reset, Data Buffer Reset, Mileage Calibration, CheckSum etc.

OBDSTAR ECU MASTER Support Models

Passenger Car
1.Support for MERCEDES-BENZ FBS3, FBS4 TCMs VlN Read/Write function via BENCH, Reset Virgin, Personalization (Data Transfer).
2.Support for AISIN SH7058, SH7055, D70F4019, R7F701204 series TCMs ECU Cloning function.
3.Support for BMW 8HP GEN3 TC275/TC277 TCMs ECU Cloning function via BENCH mode.
4.Support for JAGUAR/LAND ROVER 8HP GEN3 TC275, 9HP50 TC275 TCMs ECU cloning, VIN Read/Write functions via BENCH mode.
5.Support for HYUNDAI/KAI CANFD KEFICO CPSCU1.11.3 TC233 SBW(ETCM) ECU Cloning function.
6.Support for FORD MG1/MD1 GEN2 CANFD type ECUs R/W via OBD/BENCH mode, covering after 2020 locking types(MD1CP061, MD1CS025, MD1CS027, MG1CS036, MG1CS040, MG1CS060, MG1CS055).
7.Support for VW SIMOS series, ME17 series, EDC17 series INT eeprom (Data Transfer)(ECU Cloning).
8.Support for MAGNETI MARELLI 11GB, 11GC, 11GDB, 11GF, 11MP series ECU Cloning function via BENCH mode.
9.Support BMS/VCU ECU Cloing function via BENCH mode：
GEELY VCU BOSCH VC1-UP008.0 TC275TP
GEELY VCU BOSCH VC1-UP008.1 TC387QP
GREATWALL VCU BOSCH VC1-UP008.1 TC387QP
SAIC VCU BOSCH VCUP8.2 SPC574K
BYD YANGWANG VCU BOSCH VCU8.5
AUDI/VOLKSWAGEN/SEAT/SKODA BMS BOSCH INVCON3.3 TC275TP
AUDI/VOLKSWAGEN/SEAT/SKODA/GEELY BMS BOSCH INVCON2.3 TC1797
10.Support CHINA DELPHI MT series flash/eeprom R/W, VIN Read/Write functions.
11.Support for FIAT/ALFA ROMEO/FERRARI MB91F526 BSI ECU Cloning function and IMMO Data Decryption(BCM250X、BCM952/BCM949...).
...

HD
1.Support for MB BENZ PLD(MR) series (MR-A2, MR-A3, MR-A4, MR-A5, MR-A6, MR-A7, MR-A8) ECU Cloning function via BENCH/BOOT mode.
2.Support for MB BENZ ACM2, ACM2.1, ACM2.2 ECU Cloning function via BENCH mode.
3.Support for MB BENZ ADM2, ADM3 ECU Cloning function via BENCH mode.
4.Support for MB BENZ MCM2, MCM2.1 D2, MCM2.1 D3, MCM2.1 D4, MCM2.1 D5 ECU Cloning via BENCH/BOOT mode, Lock/Unlock ECU and Read/Write VIN.
5.Support for MB BENZ CPC/FR, CPC3, CPC4 , CPC5 ECU Cloning function via BENCH mode.
6.Support for MB BENZ BOSCH, FESTO, WABCO MP4 TCMs ECU Cloning and Read/Write functions via BENCH mode.
7.Support for MB BENZ EBS4(WABCO), EBS4+(WABCO), EBS5(BOSCH) ECU Cloning function via BENCH mode.
8.Support for MAN FFR, PTM, EDC7C3, EDC7C32 ECU Cloning function via BENCH/JTAG/BDM mode.
9.Support for SCANIA EMS S6, EMS S7, EMS S8, EMS EMD1, EGC4, EEC3, COO7, COO8, OPC5 ECU Cloning function via BENCH/JTAG mode.
10.Support for MB BENZ/DAF/IVECO/HYUNDAI/MAN GS3.0, GS3.3, GS3.6 TCMs ECU Cloning function via BENCH/BOOT mode.
11.Support for VOLVO EMS2.2, EMS2.3, EMS2.4 ECU Cloning function via BENCH mode.
12.Support for CUMMINS CM1880A, CM1881, CM2150E, CM2220A, CM2350A, CM2150C, CM2220C, CM2880, CM871, CM2220B, CM2200A Read/Write VIN function via BENCH mode.
...

Motorcycle
1.Support for HARLEY-DAVIDSON CAN(2-pin connector), CAN(3-pin connector), HD J1850 R/W Data via BENCH mode, VIN Read function.
2.Support for HARLEY-DAVIDSON MT21 R/W Data via BENCH mode, VIN Read function and Mileage Calibration.
3.Support for HONDA KEIHIN M32R, SH705X, MPC560, RH850 series R/W Data via BENCH mode.
4.Support for CFMOTO MSE6.0, MSE8.0, MSE9.0, US6.0, ME17(MED17.8.10) ECU Cloning function via BENCH mode.
5.Support for KAWASAKI DENSO series R/W Data via BENCH mode(21175-XXX series).
...

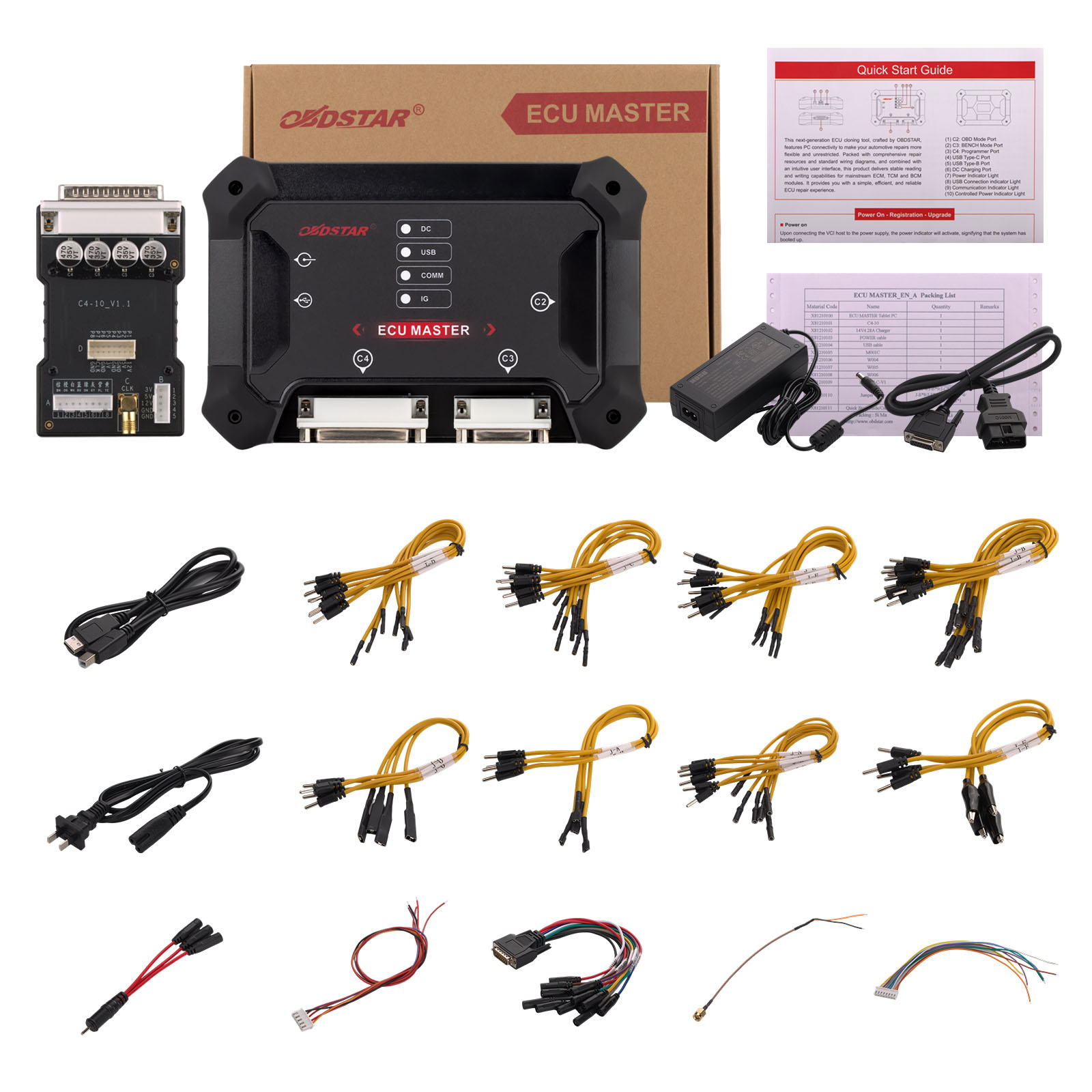

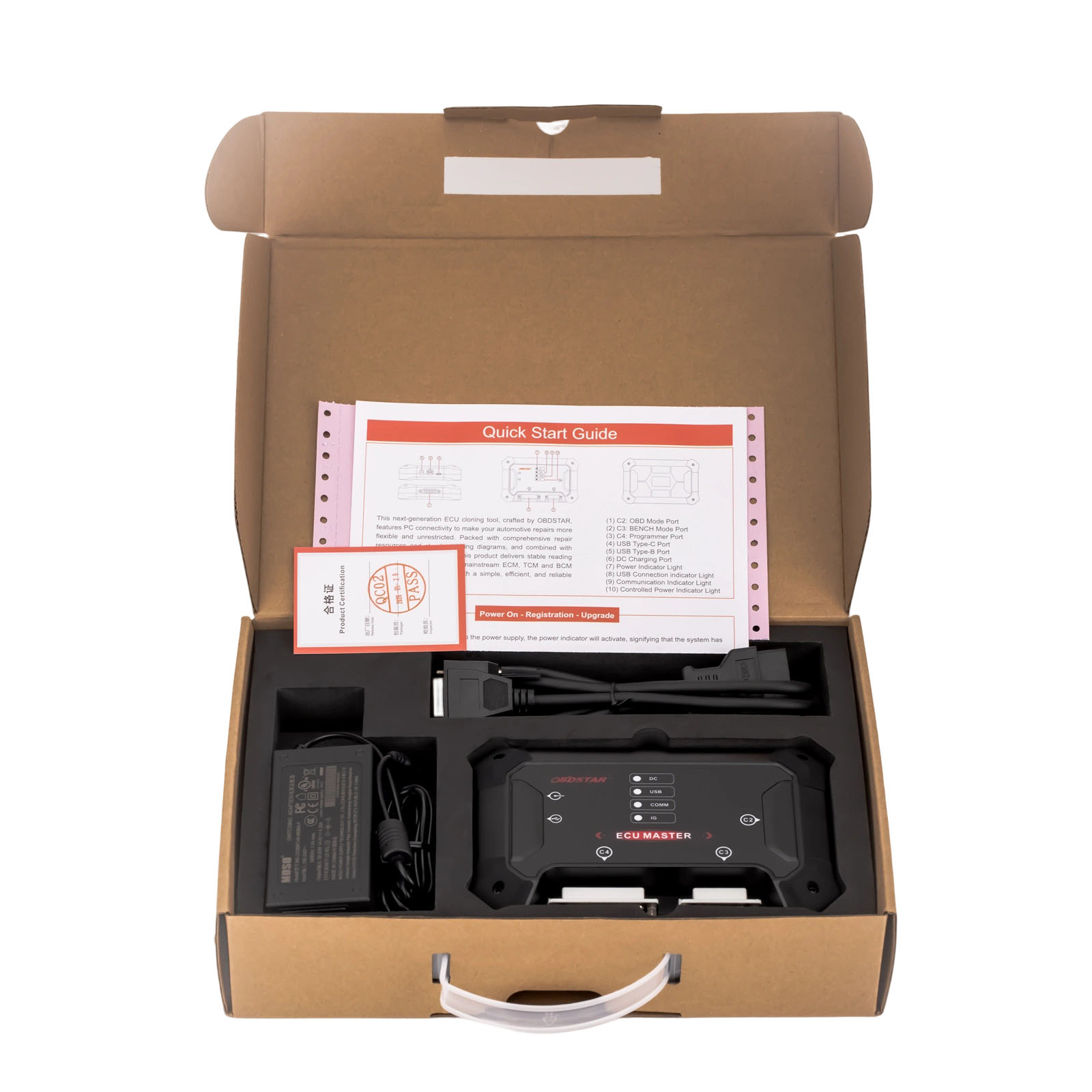

Package includes

1pc x ECU MASTER host

1pc x C4-10

1pc x Charger(14V 4.28A)

1pc x Power cable

1pc x USB cable

1pc x 3-in-1 jumper cable

4pcs x J-A jumper

9pcs x J-B jumper

7pcs x J-C jumper

8pcs x J-D jumper

8pcs x J-E jumper

4pcs x J-F jumper

6pcs x J-N jumper

4pcs x J-O jumper

1pc x M001C

1pc x W004

1pc x W005

1pc x W006

1pc x BENCH-C-V1
4pcs x Resistors

Question : Quelle est la différence entre l’ECU Data Expert et la fonction de clonage ECU du DP PAD3 ?
Réponse : Actuellement, la partie clonage pour véhicules particuliers est identique sur les deux appareils. Cependant, le DP PAD3 ne prend pas encore en charge le clonage ECU pour les véhicules utilitaires.

Question : L’ECU Data Expert nécessite-t-il un abonnement annuel ?
Réponse : Oui. Après l’enregistrement et l’activation, 12 mois d’abonnement sont offerts. Un renouvellement avant expiration permet de bénéficier de réductions supplémentaires. Après expiration, le renouvellement revient au tarif normal.

Question : L’expiration de l’abonnement de l’ECU Data Expert affecte-t-elle l’utilisation ?
Réponse : L’abonnement concerne uniquement le téléchargement et les mises à jour logicielles. Après expiration, les logiciels déjà téléchargés restent utilisables sans impact.

Question : Faut-il une alimentation externe pour utiliser l’ECU Data Expert ?
Réponse : Étant donné que certains ECU ont une puissance élevée, il est recommandé d’utiliser une alimentation stabilisée réglable professionnelle pour assurer une connexion correcte.
Veuillez régler la tension appropriée selon les instructions de l’appareil. L’appareil supporte une alimentation maximale de 26V 5A.

Question : Quels systèmes informatiques sont compatibles avec le logiciel ECU Data Expert ?
Réponse : Actuellement, le logiciel ECU Data Expert est compatible avec les ordinateurs fonctionnant sous Windows 10 ou version ultérieure.
